Pharmaland provides high-quality capsule filling machines with both semi-auto and fully-auto options. The machines are exported to 53 countries, with a track record of stable performance, reasonable price, and reliable service.
Filling material: powder, granules, pellets (optional)
Specs.of capsules: sizes #00 to #5

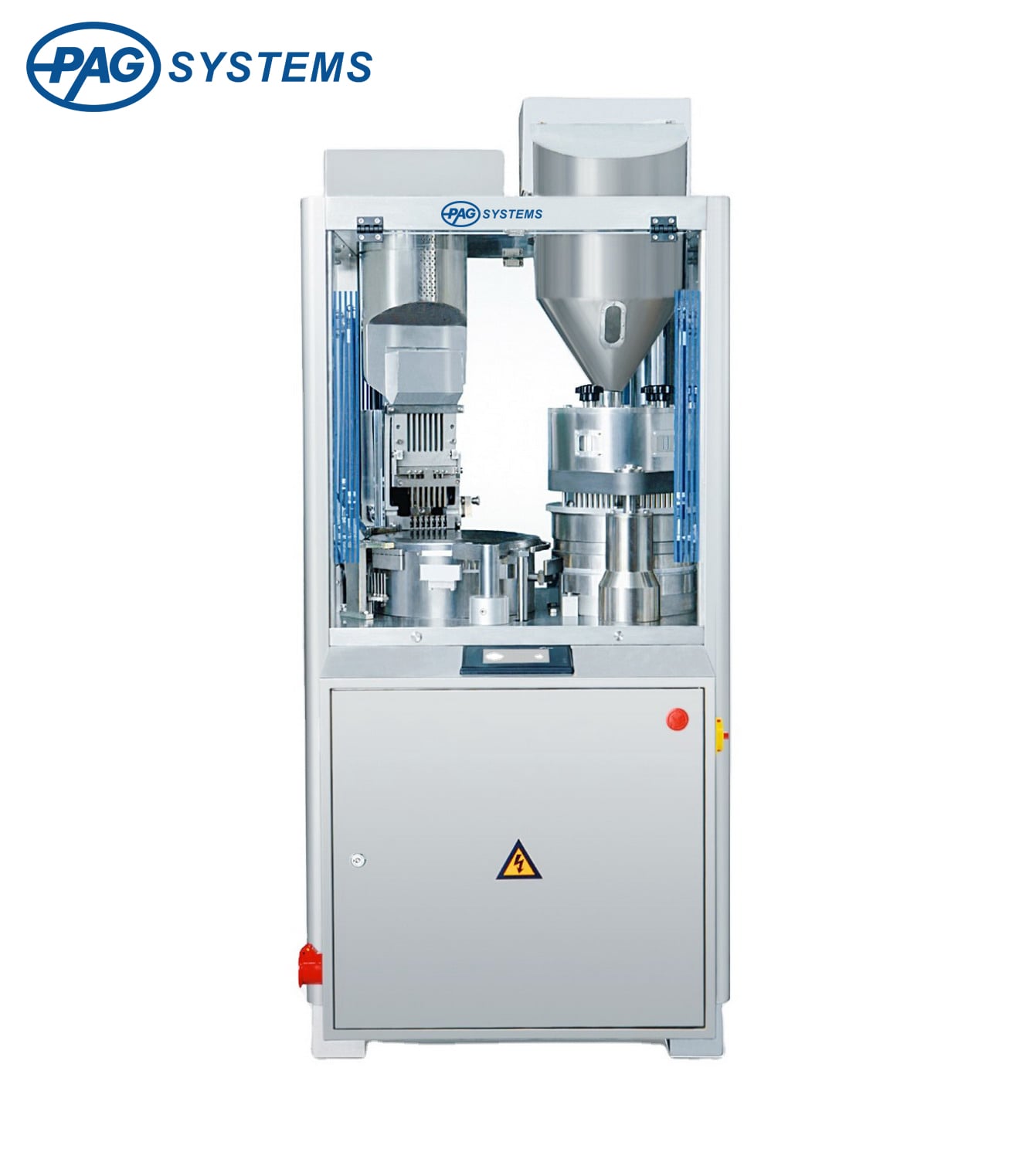

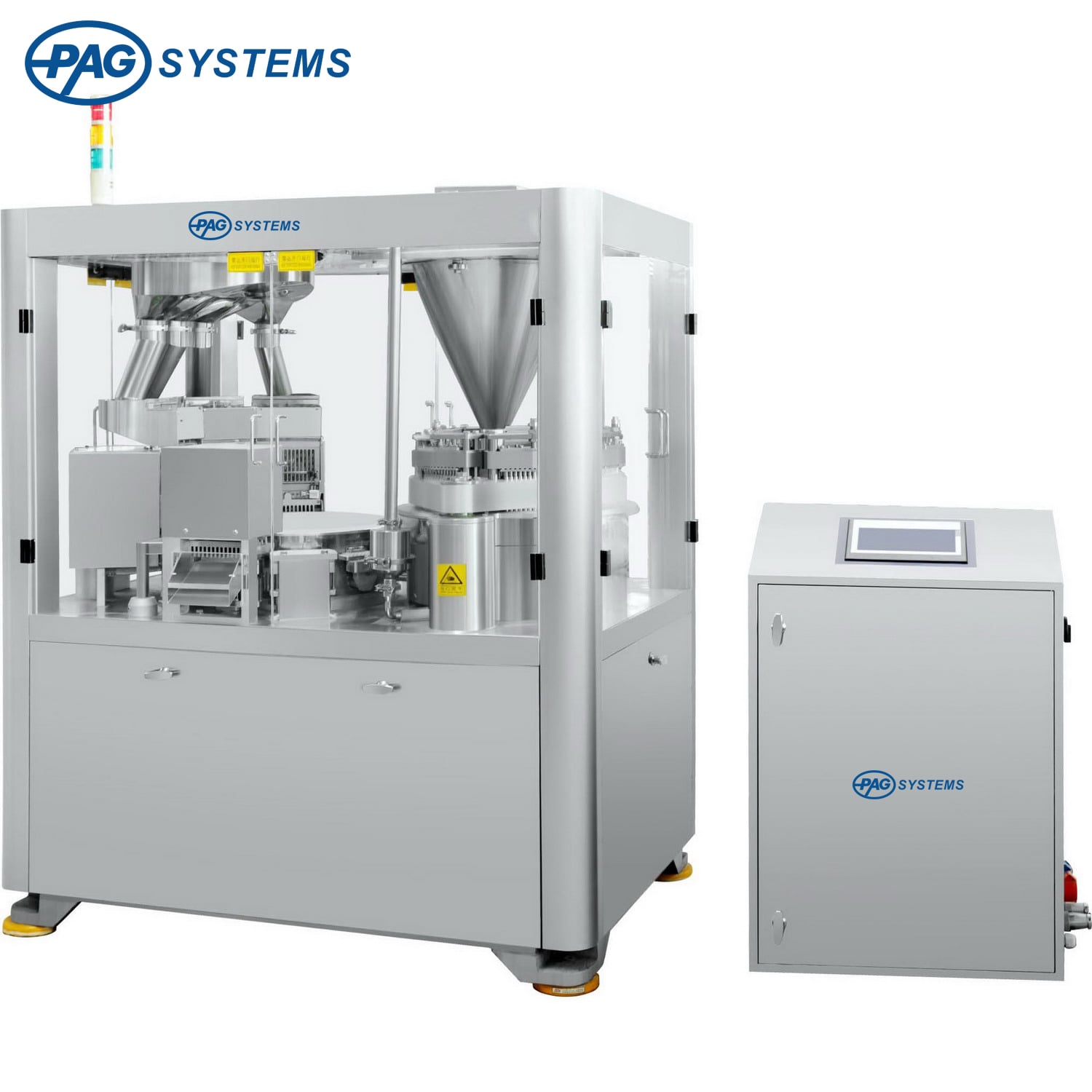

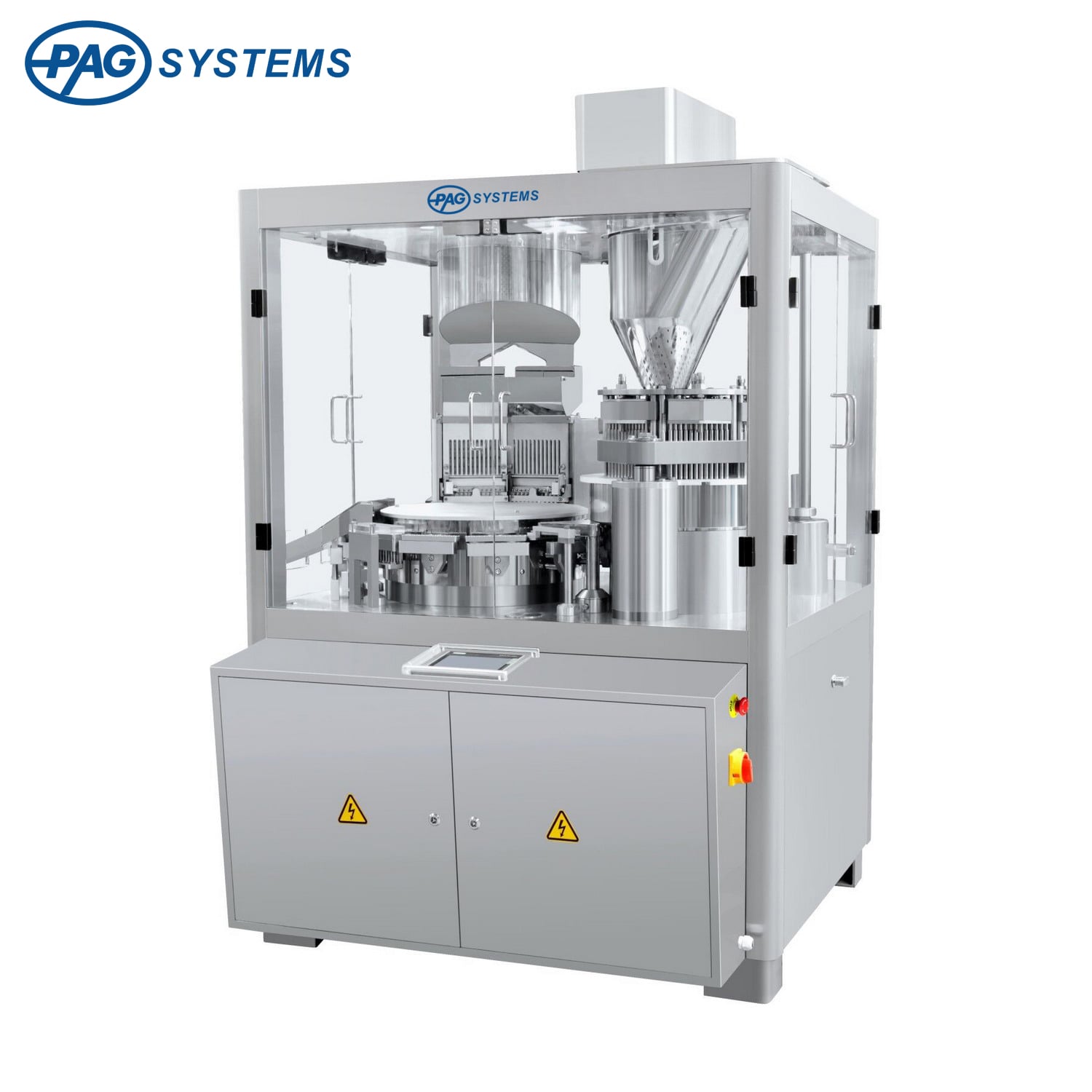

Pharmaland Technologies’ PCF series Automatic Capsule Filling Machines are equipped with the latest encapsulation technology, with an optimized design for operation, monitoring, and troubleshooting. The machines are designed in accordance with GMP standards. All parts in contact with product are made of stainless steel.
During the filling process of the intermittent capsule filling machine, the movement of the capsule relies on the indexing box to do intermittent and discontinuous rotation.
The filling volume of the capsule is mainly determined by the volume of the metering disc hole.
The capsules in the holes are sent to each working station along with the intermittent rotation of the turntable. At the first station the vacuum system will separate the capsules’ cap and body.
After starting up the machine, the capsules in hopper will be fed into magazine vertically. With each movement of the machine, the gate of magazine will release one row of capsules into rectification channels. The horizontal forks rectify the direction of capsules and vertical forks push the capsules into hole of segment with all caps on the up position.
At the second station the lower segment with capsule body extending out ready for the filling. Then the filling rod will push the pressed powder slug into capsule body
Occasionally, some empty capsules may not separate, in which case, the machine will eject these capsules before capsule closure.
The caps and body of the capsules are pushed back together.
The closed capsules will be moved to the discharge position; then the rod pushes them out of the hole. Compressed air then blows the capsules to discharge port.
At the last station the holes of segments are cleaned by vacuum cleaner and compressed air. Then the segments are ready for next cycle of operation.
1.They are more affordable than automatic machines. Semi-automatic capsule filling machines are more affordable than automatic machines and offer many of the same benefits. They are easier to use and can be setup in minutes. Additionally, they are perfect for small batches or new businesses because they are affordable and don’t require a large capital investment. This makes them a great option for businesses that are just starting out or are looking to save on costs.
2.One of the main advantages of semi-automatic capsule filling machines is that they are easy to use and clean. This means that they are perfect for busy pharmacies or clinics that need to fill prescriptions quickly and efficiently. Additionally, semi-automatic capsule filling machines produce consistent results every time, so you can be sure that your capsules will always look and feel great. like the above said, semi-automatic capsule filling machines are more affordable than fully automatic machines, so they are a great option for smaller pharmacies or clinics.
3.They have a smaller footprint, making them ideal for small businesses or laboratories ,Small businesses and laboratories often have a limited amount of space to work with, so it is important that their equipment be as compact as possible. Semi-automatic capsule filling machines take up less space than automatic machines and are perfect for small businesses or laboratories that are short on room. Additionally, semi-automatic capsule filling machines are easy to operate and can be setup in minutes, so you can get started filling capsules right away.
During the filling process of the intermittent capsule filling machine, the movement of the capsule relies on the indexing box to do intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering disc hole. This means that the size of the capsule is determined by the size of the hole on the metering disc. Smaller holes will produce smaller capsules, while larger holes will produce larger capsules.
The capsule filling and sealing machines use a heat-sealing process to seal the capsule. This heat-sealing process uses two rotating drums, one with male dies and one with female dies, to press the capsule halves together. The capsule is then cooled and ejected from the machine.
Capsule filling and sealing machines can be used to fill a variety of capsule sizes with a variety of powders, pellets, and liquids. These machines are typically used in the pharmaceutical and nutraceutical industries.
If you’re looking for a capsule filling machine or capsule sealing machine, contact us today. We’ll be happy to help you find the right capsule filling and sealing machine for your needs.
According to the movement mode of the main shaft drive table, it is divided into two types: one is continuous type, the other is intermittent type. Continuous type capsule filling machines use a motor to drive the main shaft table, which moves the capsule container and capsule filler in a continuous motion. This type of machine is best for high-volume production. Intermittent type capsule filling machines use a cam to drive the main shaft table. The table moves in short, intermittent motions. This type of capsule filling machine is best for moderate to low-volume production. If you’re not sure which type of capsule filling machine is right for your needs, contact a capsule machine manufacturer or dealer. They will be able to help you choose the right machine for your specific application and production volume.
According to the filling form, it can be divided into two types: gravity self-flow type and forced type. Gravity self-flow type capsule filling machines use the weight of the powder to flow down through the funnel and fill the capsule. Forced type capsule filling machines use a pump to force the powder into the capsule. This type of machine is best for capsule filling operations that require high accuracy and precision. Both continuous and intermittent type capsule filling machines are available in both gravity self-flow and forced types.
According to the structure of the metering and filling device, capsule filling machines can be divided into three types: metering disc type, slide type, and metering tube type. Metering disc type capsule filling machines use a disc to meter the powder into the capsule. This type of machine is best for capsule filling operations that require high accuracy and precision. Slide type capsule filling machines use a slide to meter the powder into the capsule. This type of machine is best for moderate to high-volume production. Metering tube type capsule filling machines use a tube to meter the powder into the capsule. This type of machine is best for low-volume production.
capsule filling machines are an essential piece of equipment for any capsule filling operation. But with so many different types of capsule filling machines on the market, how do you know which one is right for you? It all depends on your specific application and production volume. If you’re not sure, contact a capsule machine manufacturer or dealer
Standard seaworthy wooden case packing.
If there are any special requirements for packing, we can discuss further.
NOTE: The packaging is not designed for long-term outside storage.
Machines are wrapped with plastic film for protection
Standard wood packaging for exporting
Loading goods by forklift
Beijing China
Shenzhen China
Pharmaland Technologies proudly stands proudly behind each product sold.
One-year limited warranty and lifetime service are provided.
Machines in the project: A fully automated production line, including a coating machine, tablet press machine, filling machine, mixing machine and blister packing line. In 2016, Pharmaland met a prospective new client from Romania, who was a newcomer to the industry, who was skeptical about......
17 April, 2022 No comment
Machines in the project: a fully automated production line, including a mixing machine, coating machine, blister packaging machine line, pill press machine, filling machine, counting & packing line, etc. In 2018, an existing Pharmaland supplement client wanted to start supplement production in the USA. It......
17 April, 2022 No comment
Machines in the project: mixer, fluid bed dryer, coating machine, hard capsule filling machine, tablet press machine, powder and liquid sachet packing machine and counting line. In 2012, we were awarded a project to rebuild the GMP factory in South Africa which had sustained considerable......
31 March, 2022 No comment
I appreciate their quick response and give me clear guidance during installation, we are happy to work with this high-speed capsule filling machine.
Robert
They keep me updated during the machine production, doing well inspection before shipment, show me the video and ship everything on time. Good Job!
Zed
It is amazing that they prepared all documents which we needed in advance for customs clearance, some I didn't even know in advance, very professional!
Maria
This is the second time to buy a machine from PAG, they are the only supplier we trust, very good machine and they are very professional in customizing the production line for us.
Alfred
Very good experience to work with PAG, both the sales and their service are reliable, and the tablet press machine is easy to use and maintain.
Kenny
We use materials in accordance with GMP requirements. Also can customize according to customers’ request.
Powder, granules, pellets (optional).
• Level of automation
• Production speed
• Machine dimensions
• Reputation of the supplier
• Budget
Fully automatic capsule filling machine can help to increase the production speed, reduce the labor intensity, and save labor cost.
Velocity Modulation and PLC control system ensure the operation process safety and the dosage precision.
We offer a variety of machines to meet your needs—all as turnkey solutions.
Our professional service team can provide technical service both from China and Canada to customers anywhere in the world.
The design of each machine conforms with GMP requirements.
We can provide full documentation, such as IQ, OQ, PQ, DQ, and CE certificate.
We adhere to a strict quality control system, with careful in-process quality control and pre-shipment inspection to ensure that all machines shipped out are in excellent working condition.
We will supply a manual and a guidance video. If needed, onsite installation and training by one or two technicians can be arranged.
Pharmaland Technologies is a technology-based subsidiary of PAG Group, integrating manufacturing and trade, that specializes in supplying pharmaceutical and packaging machines.
The predecessor of PAG group is Honson Pharmatech, established in Canada in 1995.
Pharmaland mainly provides comprehensive solutions for manufacturers of all sizes, providing safe, GMP-compliant “turnkey” engineering equipment. With rich experience in pharmaceutical production, we not only provide customers with suitable machinery, but also provide suggestions for common processes.
We export machines worldwide, including Europe, America, Africa, and Asia.
Our machines have passed ISO 9001 quality system certification and CE certification. ”Quality First, Service Oriented” is our business philosophy. We are committed to providing high-quality pharmaceutical and packaging equipment and solutions for global manufacturers.
